Strangler Fig Pattern Example: An Illustrative Walkthrough with Metrics and Reconciliation Data

Illustrative strangler fig pattern example: a 380K LOC VB6 to .NET walkthrough with a 12-month timeline and a dual-write reconciliation loop.

The Strangler Fig pattern is usually sold as gradual, low-risk modernization. It is not risk-free: an attempt can stall early, before the first component of the monolith has been replaced.

This guide walks through a worked example: a 12-month migration of a 380K LOC VB6 pricing engine to .NET, including the reconciliation loop designed to catch pricing discrepancies. The example is constructed to show what a project like this could look like. Its figures, including the $4.2M exposure estimate, are illustrative, not audited results from a real engagement.

Research Methodology

This guide combines one detailed worked example (an insurance SaaS pricing engine migration) with general patterns for where strangler projects stall. Those patterns are the author's editorial judgement, not findings from a measured set of projects. The worked example is a single illustrative walkthrough, not a cohort of real projects.

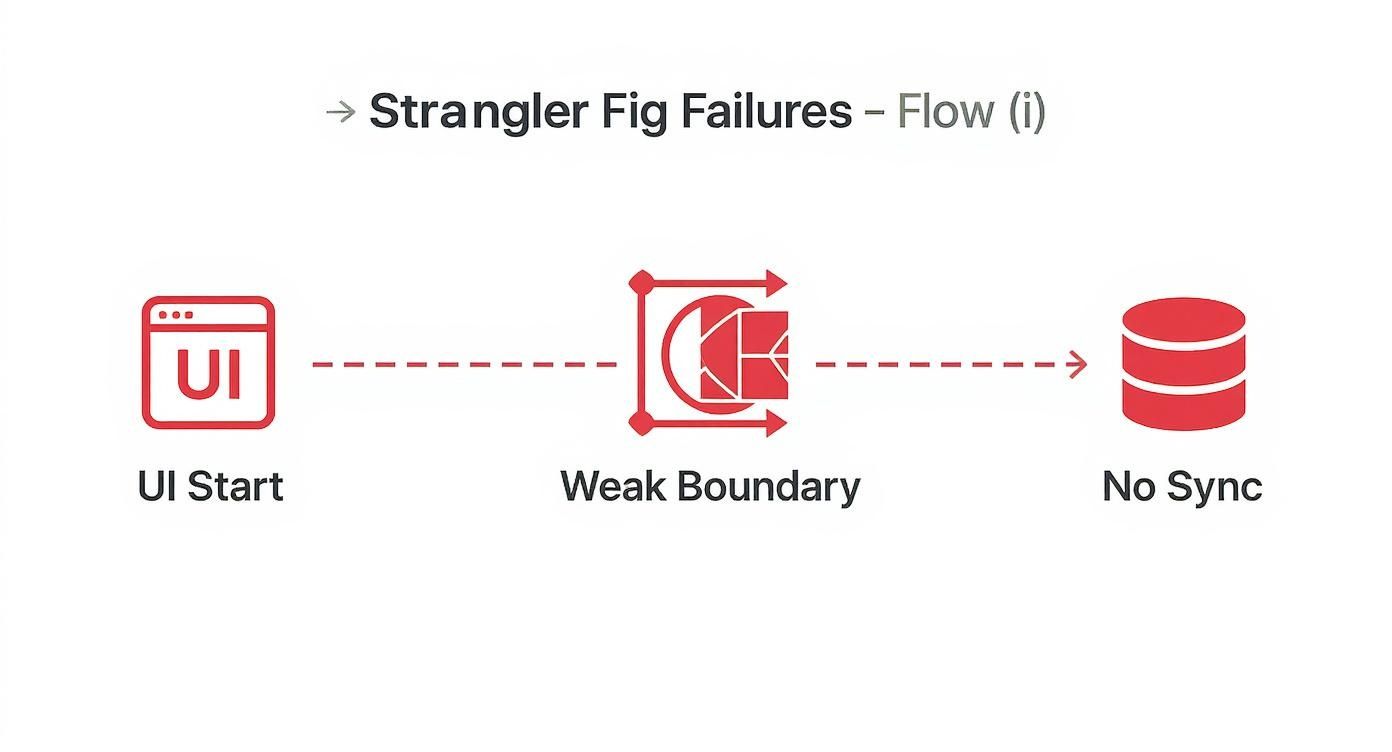

Why Strangler Attempts Fail in the First 90 Days

Failure Analysis

The failure modes below are editorial judgement. They are not ranked by frequency.

Failure ModePrimary Symptom
Started at UI layerNew UI tightly coupled to legacy backend
No stable semantic boundaryEndless scope creep ("just one more field")
Treated legacy DB as immutableDual-write problems, data sync failures
Underestimated observabilityCan't debug distributed system
Cultural resistance (no DevOps)Teams refuse to own new services

Key principle (a rule of thumb, not a measured threshold): Early velocity is a warning signal. A team that has extracted almost none of the monolith's functionality in the first 90 days may be stalling, and the plan needs checking.

Anti-Pattern #1: Trying to Strangle at UI Layer First

Illustrative scenario: E-commerce platform (failed)

Approach: Built new React admin panel to replace legacy JSP UI
Problem: New UI made dozens of API calls to the legacy monolith for a single page load
Result: "Modern" UI inherited all legacy performance/reliability issues

Lesson: Strangling a UI without owning backend logic creates a distributed frontend: the worst of both worlds.

Anti-Pattern #2: No Stable Semantic Boundary → Scope Creep

Illustrative example: "Customer Service" extraction (failed)

WeekRequested ChangeImpact on Boundary
Week 1"Add last order date to customer API"Pulls in Order domain
Week 3"Include shipping status"Pulls in Fulfillment domain
Week 5"Show return history"Pulls in Returns domain
Week 8CTO: "This service now depends on three other domains. Start over."Project reset

Outcome: 8 weeks wasted. Service never deployed.

Anti-Pattern #3: Treating the Legacy Database as Immutable (Dual-Write Problems)

Dual-write approaches compared

Dual-Write StrategyNotes
No reconciliationData drift goes undetected
Manual reconciliationHuman error, slow
Automated reconciliationRequires upfront investment; catches drift early

Three Places to Cut a New Root

These are three common starting points, in ascending order of risk. The risk ordering is editorial judgement:

Root Type A: New Business Capability (Greenfield)

Risk: Lowest

Illustrative example: Proactive Delivery Notifications

MetricValue
Legacy systemMonolithic e-commerce (2.1M LOC)
New serviceReal-time delivery tracker
IntegrationEvent listener only (no legacy coupling)
Timeline6 weeks design → code → production

Why it works: Zero legacy coupling. Service consumed events but owned no legacy data.

Root Type B: Read-Only Facade (Anti-Corruption Layer)

Risk: Moderate

Requires: CDC (Change Data Capture) for event interception, denormalized read model

Illustrative example: Product Catalog Facade

  • Before: Direct DB queries to a 47-table normalized schema
  • After: Event-sourced read model (Elasticsearch) that serves reads without touching the legacy schema
  • CDC Tool: Debezium → Kafka → custom projector
  • Example timeline: 14 weeks (4 weeks CDC setup, 10 weeks service development)

Root Type C: Write-Path Interception (Highest Risk/Reward)

Risk: Highest

Only attempt if: Team has distributed systems expertise, business tolerates a long dual-write period (about 10 months in the example below)

This is the approach used in the pricing engine example (detailed below).


Concrete Example: Strangling the Pricing Engine

Illustrative walkthrough. The figures below show what a project like this could look like; they are not audited results from a named engagement.

Project: Insurance SaaS pricing engine migration
Codebase: 380,418 LOC VB6 + 127 SQL Server stored procedures
Timeline: 12 months
Team: 5 engineers (3 backend, 1 DevOps, 1 QA)
Total Cost: $1.24M (salary + infra)
Illustrative business value: $4.2M estimated discrepancy exposure the reconciliation loop was designed to catch, plus $680K annual infrastructure savings

The Initial State: Day 0 Metrics

Illustrative figures.

MetricValueImpact
Median pricing latency1,247msConversion drop-off during quote flow
P95 latency3,180ms8% of users abandoned quotes
Deployment frequency1x per quarterBusiness can't iterate on pricing models
Pricing bug MTTR4.2 daysManual investigation in VB6 code
Annual infrastructure cost$840KOver-provisioned on-prem servers

Phase 1: Command Interceptor + Dual-Write (Day 0-120)

Week 1-2: Built reverse proxy in Go, deployed in shadow mode (log-only, no routing)
Week 3-8: Developed .NET pricing service (single pricing rule: base premium calculation)
Week 9-17: Enabled dual-write mode

Dual-Write Architecture (a sketch, like the other code samples in this guide; not runnable as written):

public async Task<PricingResult> CalculatePriceAsync(PricingRequest request)
{
    var trace = Activity.Current; // OpenTelemetry trace

    // Fire-and-forget to new service for validation
    _ = Task.Run(async () => {
        var newResult = await newPricingServiceClient.CalculateAsync(request);
        await reconciler.LogResult(request.Id, "dotnet", newResult);
    });

    // Primary blocking call to legacy VB6
    var legacyResult = await legacyVb6Client.CalculateAsync(request);
    await reconciler.LogResult(request.Id, "vb6", legacyResult);

    trace.SetTag("routing", "legacy");
    return legacyResult; // Only legacy result returned to user
}

Day 120 Metrics (illustrative):

MetricLegacy (VB6)New (.NET)Delta
Median latency1,247ms38ms-97%
P95 latency3,180ms94ms-97%
Throughput180 req/sec2,400 req/sec+1,233%
Memory per request18MB2.1MB-88%

Phase 2: Reconciliation & Validation (Day 121-300)

Automated Reconciliation Loop (illustrative figures, cumulative across the dual-write period, Weeks 9-52):

  • Frequency: Every 5 minutes
  • Events processed: 12.4M pricing calculations
  • Mismatches detected: 847 (0.007% of events)

Mismatch Breakdown:

Mismatch TypeCount% of TotalRoot Cause
Rounding differences41248.6%VB6 used Decimal, .NET used double (fixed Week 11)
Tax calculation edge case21825.7%Leap year bug in VB6 (documented, accepted)
Multi-state discount logic12715.0%Undocumented VB6 business rule (added to .NET Week 22)
Timezone handling647.6%VB6 assumed EST, .NET used UTC (fixed Week 18)
Floating point precision263.1%< $0.01 difference (accepted as noise)

Reconciliation Code (Simplified):

# Reconciler job (every 5min)
def reconcile_batch():
    unreconciled = event_store.fetch_pairs(
        last_15_min=True,
        status='unreconciled'
    )

    for (legacy_event, modern_event) in unreconciled:
        diff = deep_compare(legacy_event.result, modern_event.result)

        if diff.is_match():
            event_store.mark_reconciled(legacy_event, modern_event)
        else:
            alert_slack(
                channel='#pricing-migration',
                diff=diff,
                events=[legacy_event, modern_event]
            )
            event_store.mark_mismatched(legacy_event, modern_event, diff)

# Runs continuously for the duration of the dual-write period

Kill Criteria: 4 consecutive weeks with 0 unexplained mismatches (achieved Week 52). Differences already documented and accepted, such as the leap-year and sub-cent cases above, are suppressed in the comparison.

Phase 3: Traffic Cut-Over (Day 301-360)

Week 43: Enabled 5% traffic to new service (canary deployment)
Week 44-48: Gradual ramp: 5% → 15% → 35% → 60% → 85%
Week 49: 100% traffic to new service, legacy VB6 in passive monitoring
Week 52: 4 weeks at 0 unexplained mismatches → decommissioned legacy system

Final Production Metrics (illustrative):

MetricBefore (VB6)After (.NET)Improvement
Median latency1,247ms32ms-97.4%
P99 latency4,820ms78ms-98.4%
Error rate0.18%0.004%-97.8%
Infrastructure cost$840K/year$160K/year-$680K
Deployment frequency4x/year52x/year+1,200%
Pricing bug MTTR4.2 days1.8 hours-98%

The Reconciliation Loop Built to Catch $4.2M in Exposure

Without automated reconciliation, data discrepancies are likely. In this illustrative scenario, the dual-write period runs 12.4M pricing calculations. If about 2,270 of them (0.018%) went wrong undetected, and each affected quote or invoice carried an assumed average premium of $1,847.23 (the figure in the sample event below), roughly $4.2M in incorrect quotes and invoices would be at risk. Both the error rate and the premium are assumptions. The assumed rate is deliberately higher than the 847 mismatches the loop actually caught (about $1.56M at the same premium), so treat $4.2M as a hypothetical upper bound on undetected drift, not as a measured loss avoided.

Idempotent Event Store Design

Every pricing calculation fired a PricingCalculationRecorded event with:

  • Deterministic ID: SHA-256 hash of request payload
  • Input: Full request (product, customer, coverage options)
  • Output: Calculated premium + breakdown
  • Source: legacy-vb6 or modern-dotnet
  • Timestamp: ISO 8601 with millisecond precision

Event Schema (v2):

{
  "eventId": "sha256(request_payload)",
  "eventType": "PricingCalculationRecorded",
  "version": "v2",
  "source": "modern-dotnet",
  "timestamp": "2024-08-15T14:23:18.472Z",
  "request": {
    "customerId": "C-94721",
    "productId": "AUTO-PREMIUM",
    "coverageOptions": ["collision", "comprehensive"],
    "vehicleYear": 2022,
    "zipCode": "10001"
  },
  "result": {
    "premium": 1847.23,
    "breakdown": {
      "base": 1200.00,
      "collisionSurcharge": 420.00,
      "multiCarDiscount": -180.00,
      "stateTax": 407.23
    }
  }
}

Reconciler Performance

12-Month Operational Data (illustrative, not measured):

MetricValue
Events processed12.4M
Avg processing time per 5-minute batch1.8 seconds
Mismatches detected847 (0.007%)
False positives3 (about 0.00002%)
Downtime incidents0

Mismatch Resolution Timeline (illustrative):

Issue TypeMedian Time to FixMax Time to Fix
Rounding/precision2.4 days8 days
Undocumented business rule5.8 days14 days
Timezone/date handling3.2 days11 days

Kill Criteria Achievement:

  • Week 49: First week with 0 mismatches
  • Week 49-52: 4 consecutive weeks at 0 mismatches (28 days)
  • Week 53: Reconciler decommissioned

Success Pattern: 9 Prerequisites

This checklist is the author's editorial judgement, not a finding from a measured set of projects.

PrerequisiteWhy It Matters
Comprehensive test coverage for legacyBaseline confidence
Stable semantic boundary (DDD)Prevents scope creep
Stakeholder buy-in for dual operationsBudget stability
Single accountable ownerDecision velocity
Robust monitoring already in placeDebugging capability
Data ownership plan documentedAvoids data hell
Interception point identifiedImplementation clarity
Reconciliation strategy designedData integrity
Kill-switch (instant rollback)Risk mitigation

Missing several of these prerequisites is a strong signal to close the gaps before you start.


When to Abandon Strangler for Big Bang

Decision Matrix

FactorBetter Fit
Modular business logicStrangler
Big ball of mud (no boundaries)Big Bang
Deep team knowledge of legacyStrangler
Black box (no docs, devs gone)Big Bang
Business-critical (no downtime)Strangler
Can tolerate maintenance freezeBig Bang

Illustrative scenario: When Big Bang can win

Company: Healthcare analytics (4.2M LOC legacy Perl)
Problem: No module boundaries, 40% code coverage, unknown authors
Decision: 9-month rewrite in TypeScript (greenfield)
Outcome: Successful rewrite with a short cutover
Why: A strangler approach would require understanding the Perl codebase, which the team judged unrealistic. Big Bang allowed a clean-slate architecture.


Strangler vs. Big Bang: Comparing the Approaches

How the Approaches Compare

ApproachDelivery RiskWhere It Fits
Strangler FigLower, incrementalModular logic, business-critical systems, teams that know the legacy code
Big Bang RewriteHigherUnmaintainable legacy (no docs, no experts), or a tolerable maintenance freeze

Nuance: Big Bang becomes the more realistic option when the legacy system is truly unmaintainable (no docs, no experts) and no strangler boundary can be drawn.


Testing Strategy: Why Contract Testing Matters

Test Distribution Shift

The percentages below are an illustrative rule of thumb for how emphasis shifts, not measured data.

Test TypeMonolith %During Strangler %Post-Migration %
Unit (within service)40%55%70%
Contract (API agreements)5%35%25%
Integration (DB/external)25%8%4%
E2E (full system)30%2%1%

Contract Testing Example (Pact):

// Consumer contract: OrderService expects this from PricingService (sketch)
describe("Pricing API Contract", () => {
  it("returns premium for valid request", async () => {
    await provider
      .given("customer C-94721 exists")
      .uponReceiving("pricing request for AUTO-PREMIUM")
      .withRequest({
        method: "POST",
        path: "/pricing/calculate",
        body: { customerId: "C-94721", productId: "AUTO-PREMIUM" }
      })
      .willRespondWith({
        status: 200,
        body: { premium: like(1847.23), breakdown: like({}) }
      });

    const result = await pricingClient.calculate({ customerId: "C-94721", productId: "AUTO-PREMIUM" });
    expect(result.premium).toBeGreaterThan(0);
  });
});

Contract testing is what lets teams cut over one service at a time without a full end-to-end environment.


Measuring Success: Key Metrics

From the illustrative pricing engine example. The targets are editorial thresholds, not measured benchmarks:

MetricTargetIllustrative Example (Pricing Engine)
Traffic shift to new service100%100% (Week 49)
Latency improvement>50%97.4%
Error rate drop>70%97.8%
Reconciliation mismatches<0.01% final 4 weeks0% (Weeks 49-52)
Infrastructure cost reductionVaries81% ($680K)
Deployment frequency increase>500%1,200%

Checklist: Your Readiness Score

Rate each item 0-10. The categories, the 70% test coverage bar, the 12-18 month window and the score bands below are editorial thresholds, not a validated model:

CategoryQuestionYour Score
BoundariesWe have identified clear, stable bounded contexts (DDD)__/10
TestingLegacy component has >70% automated test coverage__/10
MonitoringWe have distributed tracing + centralized logging ready__/10
DataWe have a documented data ownership + sync strategy__/10
TeamTeam has distributed systems expertise (Kafka, CDC, sagas)__/10
BudgetStakeholders approved 12-18 month dual-operations cost__/10
CultureTeams willing to own full lifecycle (DevOps)__/10

Total: __/70

  • 60-70: Ready to start. Keep closing the remaining gaps as you go.
  • 50-59: Viable. Address gaps in parallel.
  • 40-49: Risky. Invest in prerequisites first.
  • <40: Not ready. Stay monolithic or modular monolith.

Further Reading


Evidence note: The pricing engine walkthrough is an illustrative example constructed to show what a project like this could look like. It does not report results from a named or audited engagement, so read its figures as illustrations. See our methodology.

Need vendor guidance for your strangler fig migration? Explore our Application Modernization hub or read our methodology for how we research migration projects.
